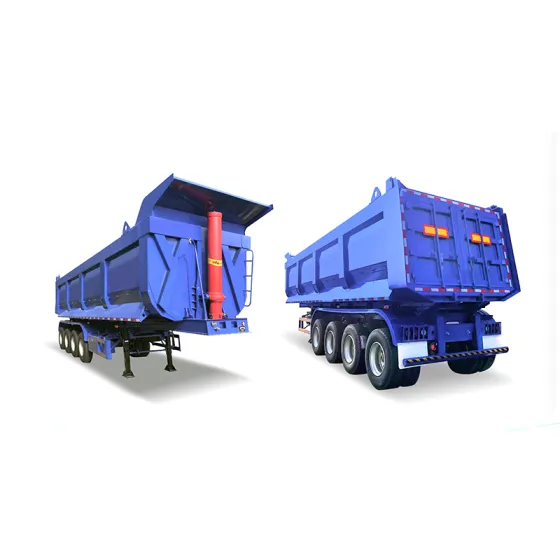

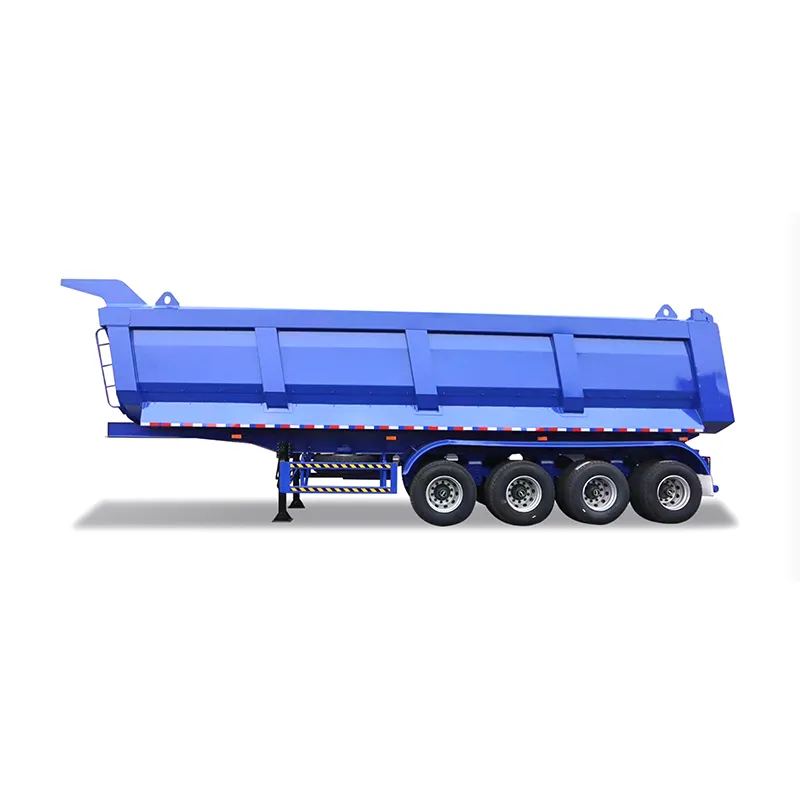

| 10.5M U-BUCKET TIPPER TRAILER | |
| Name of Product | 10.5m U-bucket Tipper trailer |
| Overall Dimensions(mm) | 10455x2700x3800 |
| interior Dimensions(mm) | 9000×2300/2500×1700 |
| Tare Weight(kg) | Appr. 15000 KG |
| Pay Load(kg) | 100000KG |
| Wheelbase(mm) | 4240+1310+1310+1310 |
| Main Beam(mm) | Height:500mm |
| Upper Plate thicknes:14mm | |
| Middle Plate thicknes:8+6mm | |
| Lower Plate thickness:14mm | |
| Material:T700 steel | |
| King Pin | 90# assenbly type-12 |
| Leaf Spring | 12pieces*16mm*120mm |
| Suspensions | Mechanical suspension with reinforcement |
| Landing Gear | FUWA 28T |
| Axle | FUWA 20T*4 |
| Tires | DOUBLECOIN 315/80R22.5*16+1 pieces |
| Wheels | 9.0-22.5*13 |
| Spare Wheel Carrier | 1 |
| Tool Box | 1 |
| Lamps and Lanterns | LED |
| Power Outlet | 24V 7-core |
| Tipper Body | Floor 8mm thick |
| Wall 8mm thick | |
| Hydraulic Cylinder | JIAHENG 5TG-Φ226×7300 |
