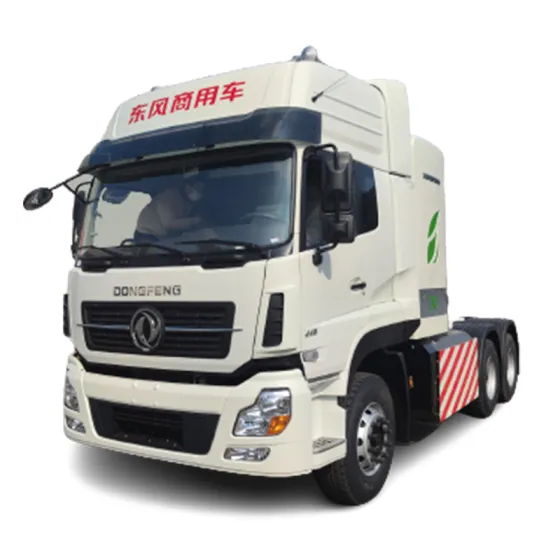

| 6X4 CNG TRACTOR SPECIFICATION | |||
| Vehicle Size:7560*2550*3770 | |||
| Wheelbase | 3900+1350 | GCW | 100000 |
| Total Mass | 25000 | Curb weight | 13300 |
| Engine | Model | YUCHAI YC6K1344N | |
| Maximum power | 324(440HP)/1900 rpm | ||
| Maximum torque | 1880 N.m/1100-1500 rpm | ||
| Number of cylinders | 6 | ||
| Displacement | 13L | ||
| Clutch | Diameter | ￠430mm | |
| Gearbox | Type model | 12JSD240TA | |
| Braking System | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, drum brake, engine brake, ABS | ||
| Cab | D901 sleeper cab,all welded steel cab, electrical cab tilting, adjustable driver’s seat, air conditioning system, electrical windows, central lock | ||
| Front and Rear Axles | Front axle/rear axle | 9T/22+22T | |
| Tire | 315/80R22.5 18PR, 10+1 pieces, rim 14mm thick | ||
| Suspension | 10 front springs, thickness 16 mm | 13 rear springs, thickness 25 mm | |
| Frame | 8+8+6 | ||
| Battery | 24V, 165×2 | ||
| Fifth Wheel | 90# | ||
| Tank Volume | 2320L winding cylinder | ||
